I think I have all the parts I need for a keyboard force curve tester. I still need to build a mounting bracket, reverse engineer the USB serial output from my force measuring tool, and build the integration between the measuring tool, gantry, and actuation test
On twitter.com ❤️ 20 Favorites 2019 Sep 22 Mood 0

…in reply to @obra
First hardware integration test of the force curve tester.
https://video.twimg.com/ext_tw_video/1175861850044416000/pu/vid/720x1280/v4DPT8DnY91bizr7.mp4?tag=10
Permalink On twitter.com ❤️ 12 Favorites 2019 Sep 22 Mood 0

…in reply to @obra
OK, I can read the force tester
https://video.twimg.com/ext_tw_video/1175966075139190784/pu/vid/1280x720/N8ssRUj52nAi58nF.mp4?tag=10
Permalink On twitter.com ♻️ 1 Retweets ❤️ 7 Favorites 2019 Sep 23 Mood 0

…in reply to @obra
And I can pull force data for a key switch.
https://video.twimg.com/ext_tw_video/1175986595482095618/pu/vid/1280x720/v24NkV3sEq1GQY3B.mp4?tag=10
Permalink On twitter.com ❤️ 3 Favorites 2019 Sep 23 Mood 0

…in reply to @obra
Can anybody guess what switch this is from the data in the video?
https://video.twimg.com/ext_tw_video/1176007148741881856/pu/vid/874x720/cpkFmjYi1JsnWh19.mp4?tag=10
Permalink On twitter.com ♻️ 1 Retweets ❤️ 2 Favorites 2019 Sep 23 Mood 0

…in reply to @obra

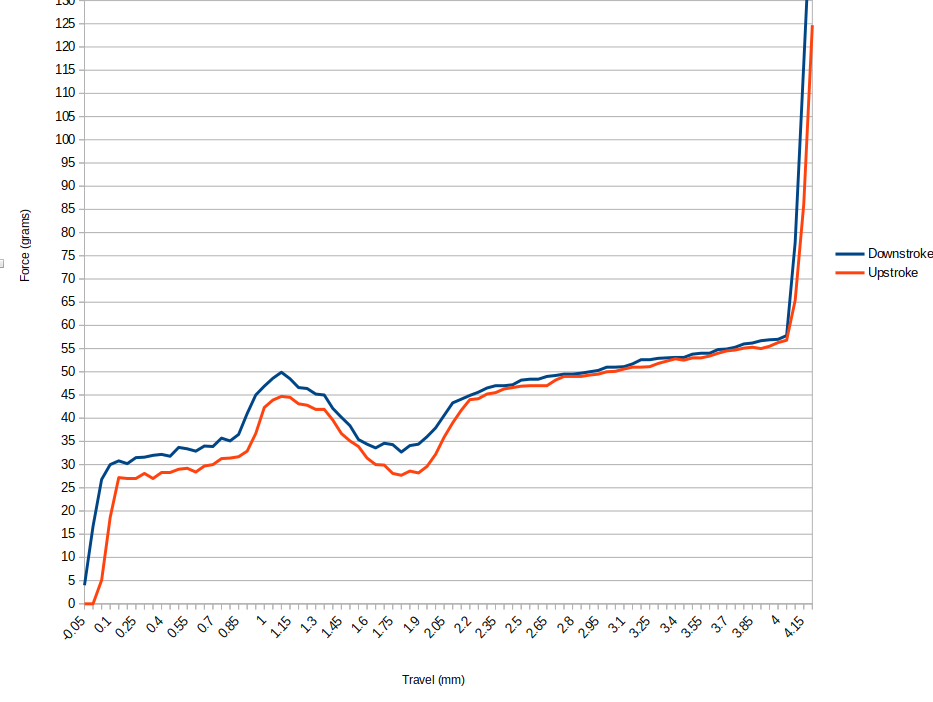

Ok. Maybe this will make it easier. Anyone want to guess the switch from this chart?
https://pbs.twimg.com/media/EFIOWJcVAAAd_hP.png
Permalink On twitter.com ♻️ 1 Retweets ❤️ 4 Favorites 2019 Sep 23 Mood +1 🙂

…in reply to @obra
Next steps involve some bulletproofing, key actuation detection, and something to automate graph plotting. but that will take this beyond the realm of the one afternoon hack.
